Threaded Fittings Manufacturer, Supplier, Exporter in India
Stainless Steel Threaded Fittings, Carbon Steel Threaded Fittings, Alloy Steel Threaded Fittings, Duplex Steel Threaded Fittings, Super Duplex Steel Threaded Fittings, Inconel Steel Threaded Fittings, Monel Steel Threaded Fittings, Nickel Alloy Threaded Fittings, Hastelloy Threaded Fittings Manufacturer in India.
Sumer Metal Industries Private Limited is a specialized Threaded Fittings Manufacturer in India. We produce these Fittings on a huge scale and sell them to buyers all around the world at low prices. ASME B16.11 Threaded Fitting come in a variety of shapes, sizes, and standards. They have exceptional attributes such as a sturdy structure, appealing design, and a smooth surface finish, among others. The manufacturing processes are carried out with the most up-to-date machines and equipment, all of which are operated by qualified and skilled operators. In a variety of acidic and alkaline situations, Threaded Fiattings offer a great combination of high strength and corrosion resistance.
In India, Sumer Metal Industries Private Limited is a leading exporter, manufacturer, and supplier of Threaded Fittings. Good mechanical qualities, great resistance to sulfuric and hydrofluoric acids, excellent resistance to chloride in stress corrosion cracking, exact dimension, extended functional life, and ease of maintenance are just a few of the benefits of our Threaded Fittings. They’re resistant to alkaline and acidic salts, as well as oxidation. Domestic water, fire protection, and industrial cooling water systems are all examples of low-cost, non-critical applications. Cast grey or malleable iron, cast brass or bronze, or forged alloy and carbon steel are the most common materials for Threaded Fittings. There are three pressure ratings available: Class 2000, 3000, and 6000.

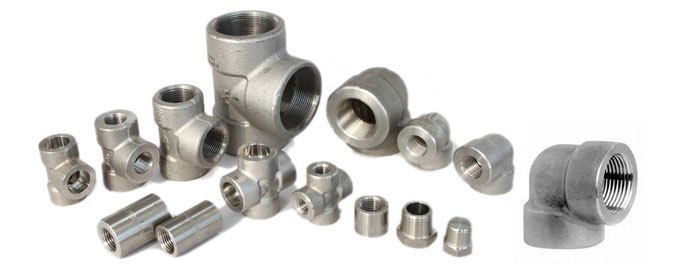

Sumer Metal offers a complete range of Threaded Fittings including elbows, tees, couplings, unions, crosses, plugs, bushings, outlets, and caps, available in various pressure classes and sizes. These fittings are manufactured using premium-grade raw materials such as stainless steel, carbon steel, alloy steel, duplex, super duplex, Inconel, Monel, Hastelloy, and other high-performance alloys. The production process includes forging, heat treatment, and precision machining to ensure dimensional accuracy and mechanical strength.
Specification of Threaded Fittings
| DIMENSIONS: | ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799 |
| SIZE: | 1/8″ NB TO 4″ NB |
| PRESSURE CLASS: | 3000 LBS, 6000 LBS, 9000 LBS |
| MATERIALS: | Monel, Nickel, Inconel, Hastalloy, Copper, Brass, Bronze, Titanium, Tantalum, Bismuth, Aluminium, High Speed Steel, Zinc, Lead, Etc. |
All Threaded Fittings supplied by the company comply with international standards like ASME B16.11, MSS-SP-79, MSS-SP-95, MSS-SP-97, and other ASTM specifications. Sumer Metal maintains a rigorous quality control process which includes visual inspection, hydro testing, PMI (Positive Material Identification), and third-party certifications to guarantee reliability and safety in critical operations.
The company caters to both small-scale needs and bulk industrial orders with a commitment to on-time delivery, competitive pricing, and customer satisfaction. Sumer Metal Industries' Threaded Fittings are in high demand in the Middle East, Europe, Southeast Asia, and Africa, supported by a wide global distribution network and a responsive customer support team.
MATERIALS AND GRADES OF ASME B16.11 Threaded FITTINGS
| STAINLESS STEEL THREADED FITTINGS : | ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F454L, ASTM A312/A403 TP304, TP304L, TP316, TP316L |
| DUPLEX & SUPER DUPLEX STEEL THREADED FITTINGS : | ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950. |
| CARBON STEEL THREADED FITTINGS : | ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C |
| ALLOY STEEL THREADED FITTINGS : | ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91 |
| COPPER ALLOY THREADED FITTINGS : | ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 45/10) , C 71500 ( CU -NI- 70/30) |
| NICKEL ALLOY THREADED FITTINGS : | ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( Alloy 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276) |
Threaded Fittings Dimension Chart
| DN | Nom Pipe Size |
Socket Bore Dia.(2) B |
Bore Diameter of Fittings(2) D |
Socket Wall Thickness(1) C |
Body Wall Thickness G |
Depth of Socket Min. J |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Class Designation | Class Designation | ||||||||||
| Class Designation | 3000 | 6000 | 3000 | 6000 | |||||||
| 3000 | 6000 | Ave. | Min. | Ave. | Min. | Min. | Min. | ||||
| 6 | 1/8 | 11.2 10.8 |
7.6 6.1 |
7.6 6.1 |
3.18 | 3.18 | 3.96 | 3.43 | 2.41 | 3.15 | 9.5 |
| 8 | 1/4 | 14.6 14.2 |
10.0 8.5 |
10.0 8.5 |
3.78 | 3.30 | 4.60 | 4.01 | 3.02 | 3.68 | 9.5 |
| 10 | 3/8 | 18 17.6 |
13.3 11.8 |
13.3 11.8 |
4.01 | 3.50 | 5.03 | 4.37 | 3.20 | 4.01 | 9.5 |
| 15 | 1/2 | 22.2 21.8 |
16.6 15.0 |
16.6 15.0 |
4.67 | 4.09 | 5.97 | 5.18 | 3.73 | 4.78 | 9.5 |
| 20 | 3/4 | 27.6 27.2 |
21.7 20.2 |
21.7 20.2 |
4.90 | 4.27 | 6.96 | 6.04 | 3.91 | 5.56 | 12.5 |
| 25 | 1 | 34.3 33.9 |
27.4 25.9 |
27.4 25.9 |
5.69 | 4.98 | 7.92 | 6.93 | 4.55 | 6.35 | 12.5 |
| 32 | 1-1/4 | 43.1 42.7 |
35.8 34.3 |
35.8 34.3 |
6.07 | 5.28 | 7.92 | 6.93 | 4.85 | 6.35 | 12.5 |
| 40 | 1-1/2 | 49.2 48.8 |
41.6 40.1 |
41.6 40.1 |
6.35 | 5.54 | 8.92 | 7.80 | 5.08 | 7.14 | 12.5 |
| 50 | 2 | 61.7 61.2 |
53.3 51.7 |
53.3 51.7 |
6.93 | 6.04 | 10.92 | 9.50 | 5.54 | 8.74 | 16.0 |
| 65 | 2-1/2 | 74.4 73.9 |
64.2 61.2 |
64.2 61.2 |
8.76 | 7.67 | 7.01 | 16.0 | |||
| 80 | 3 | 90.3 89.8 |
79.4 76.4 |
79.4 76.4 |
9.52 | 8.30 | 7.62 | 16.0 | |||
| 100 | 4 | 115.7 115.2 |
103.8 100.7 |
103.8 100.7 |
10.69 | 9.35 | 8.56 | 16.0 | |||
